Fishmouth Pipe Notching Template Set – 6 Angles, Multiple OD Sizes

Price range: €35.00 through €115.00

Physical set of six reusable 3D-printed fishmouth pipe notching templates for marking accurate tube-to-tube joints at 15°, 30°, 45°, 60°, 75° and 90°. Select the required Pipe Outside Diameter or request a custom size.

SKU: CC-GDL-KIT6 Category: Tags: , , , , , Brand:

Fishmouth Pipe Notching Template Set

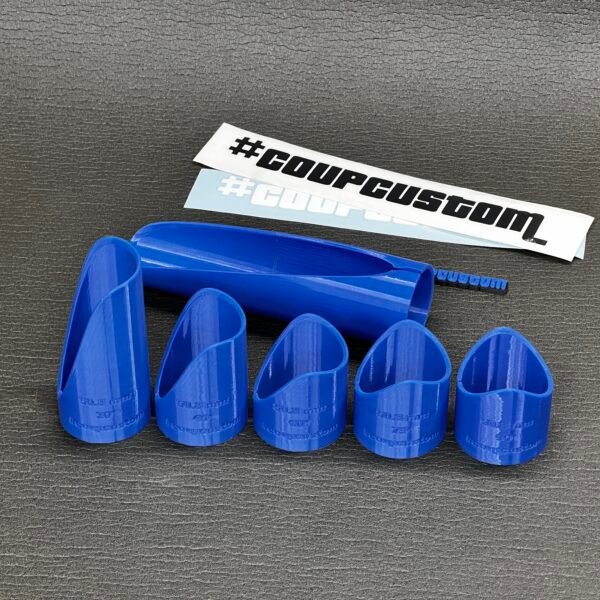

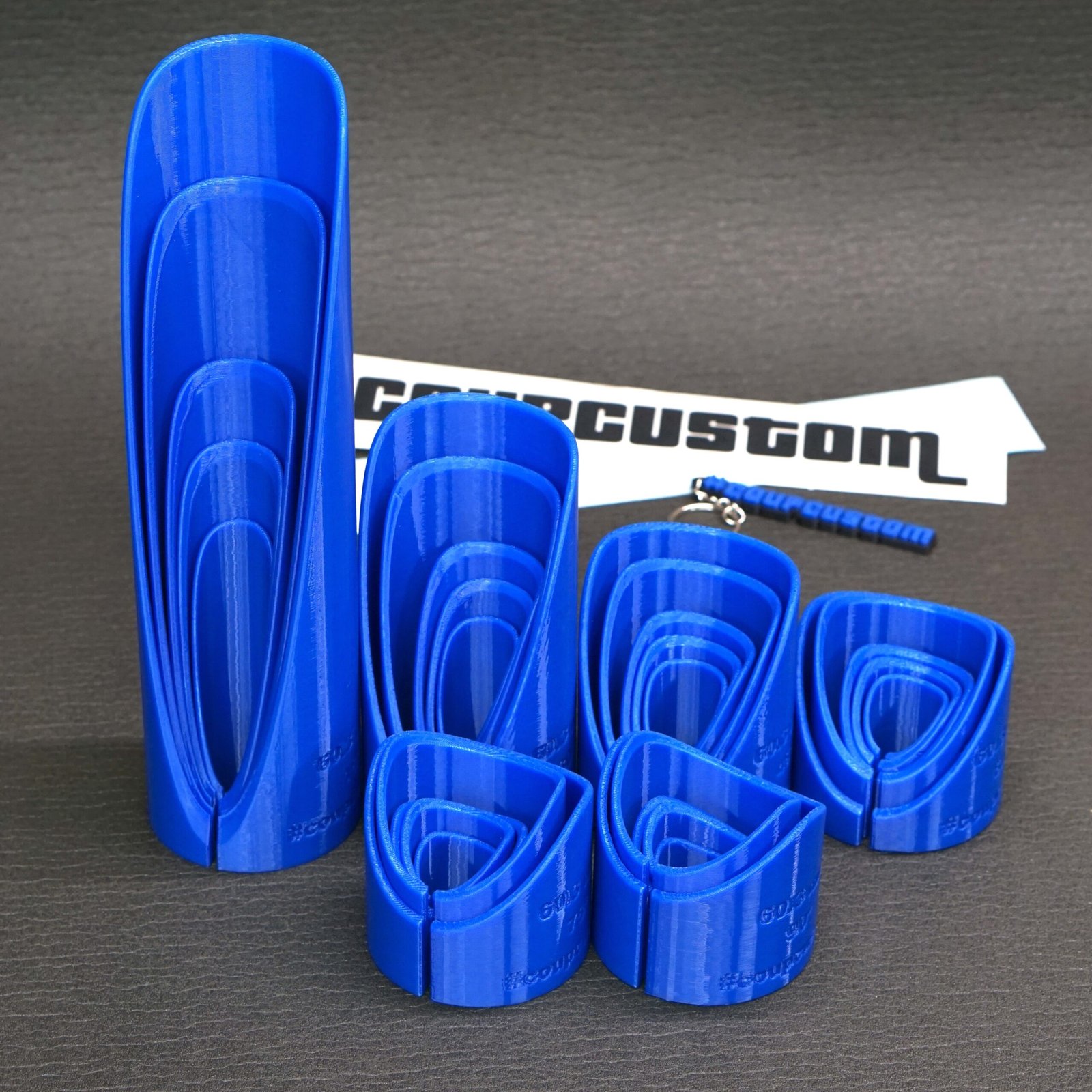

This physical set includes six reusable 3D-printed marking templates for producing accurate fishmouth, saddle-notch and tube-coping profiles on round tubing.

Each template corresponds to a different tube intersection angle:

– 15°
– 30°
– 45°
– 60°
– 75°
– 90°

Choose the set that matches the actual outside diameter of your tubing.

What You Receive

– Six physical 3D-printed marking templates
– One template for each included angle
– 15°, 30°, 45°, 60°, 75° and 90°
– One selected Pipe Outside Diameter
– A reusable workshop tool made to order by Coup Custom
– No STL files or other digital downloads

Applications

Suitable for:

– Exhaust header fabrication
– Turbo manifold fabrication
– Custom exhaust systems
– Motorsport fabrication
– Roll cages and chassis tubing
– Motorcycle exhaust systems
– General tube fabrication
– Welding and metalworking projects

How to Use

1. Measure the actual outside diameter of the tubing.
2. Select the matching Pipe OD set.
3. Choose the template for the required joint angle.

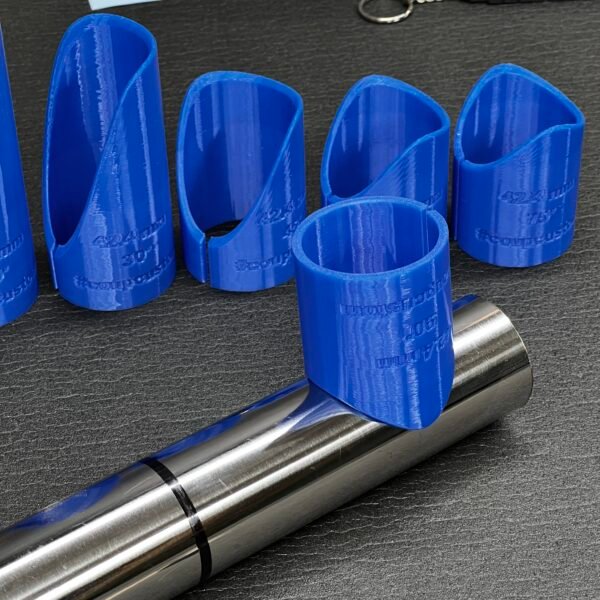

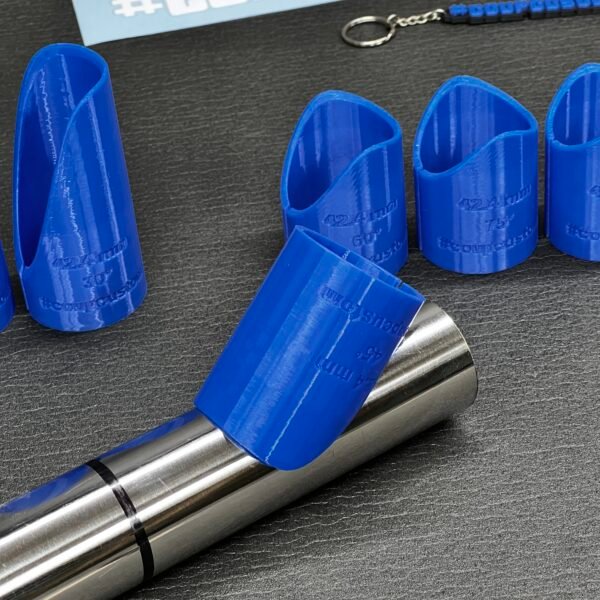

4. Slide the template over the tube.
5. Position and align the template.
6. Trace the complete fishmouth profile with a marker or scribe.
7. Remove the plastic template.
8. Cut close to the marked profile.
9. Deburr and refine the cut.
10. Test-fit the tube against the receiving tube before welding.

Important Fit Information

These templates are designed for equal-OD round tube-to-tube joints. The tube being notched and the receiving tube must have the same outside diameter.

Always measure the actual tube outside diameter before ordering. Metric dimensions are the primary reference. Decimal-inch dimensions are provided as a convenient reference and may be approximate.

Tube manufacturing tolerances, welded seams and surface coatings can affect the fit.

Custom Pipe OD

If the required diameter is not listed, select Custom Pipe OD and enter the exact outside diameter in millimetres.

Custom templates are manufactured specifically for the dimension provided by the customer. Production cannot begin until the custom Pipe OD has been supplied and confirmed.

Safety

These products are marking templates only.

Remove the template before using an angle grinder, cutting disc, saw or other cutting equipment. Keep the plastic templates away from sparks, open flames, welding heat and hot metal.

Always test-fit the prepared tubes before tack welding or final welding.

Pipe Outside Diameter (OD)

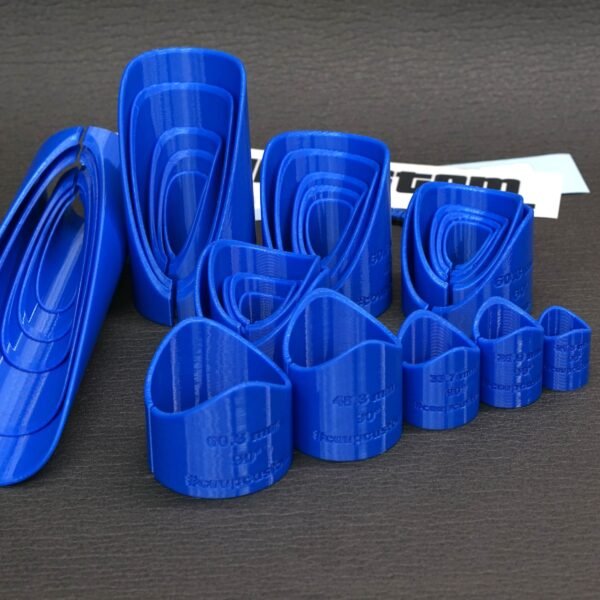

21.3 mm / 0.84 in, 26.9 mm / 1.06 in, 33.7 mm / 1.33 in, 38.1 mm / 1.50 in, 40 mm / 1.57 in, 42.4 mm / 1.67 in, 44.45 mm / 1.75 in, 48 mm / 1.89 in, 48.3 mm / 1.90 in, 50.8 mm / 2.00 in, 57 mm / 2.25 in, 60.3 mm / 2.37 in, 63.5 mm / 2.50 in, 70 mm / 2.75 in, 76.2 mm / 3.00 in, 80 mm / 3.15 in, 88.9 mm / 3.50 in, 101.6 mm / 4.00 in, 108 mm / 4.25 in, 114.3 mm / 4.50 in, Custom Pipe OD
